OMNIBOT

This robot was made in the mid 80's by a company called TOMY.
Omnibot Home Page

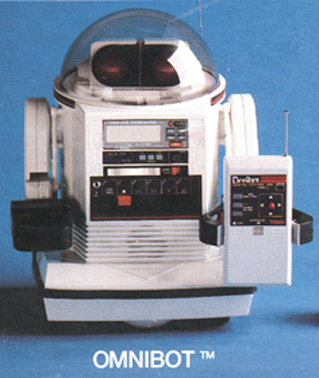

Omnibot This is an Omnibot .
It has the following options that make it so great:
It can move Forward/Reverse/Left/Right.
It's left arm / right arm is poseable.
Has a digital clock with alarm.
Remote has a microphone that allows your voice to speak from the robot.
Tape deck to play cassette or record.
  • Programs
  • Music
Eyes Light up when you speak into the microphone or when playing an audio tape.

Stands 14  inches tall

Omnibot Remote This is the remote for the Omnibot .
This allows you to send commands to the robot.
*Without it you can't use the Robot.
Commands
  • Power Switch On/Off
  • Direction
    • Forward
    • Back
    • Left
    • Right
  • Tape Start/Stop
  • Omnibot Sounds
  • Push To Talk Button - Sends your Voice though the Robot.
Power Supply
  • Four (4) "AA"  1.5 Volt Alkaline
Freq.
  • 49.860 Mhz (US)
  • 27.145 Mhz (EC)
  • 40.680 Mhz (TAL)

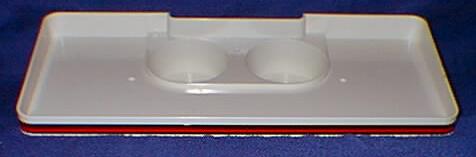

Omnibot Tray This is a Tray.
The robot holds this with his hands.
Home Base This is the Home base.
It is used as a reference point when you are programing the Omnibot.
Size: 10" X 10 "
Click on Image to Enlarge
* It is not a needed part
AC to DC Charger This is the Battery Charger.
It is used to charge the Lead Acid Battery.
Original Specs:
Input: 120VAC, 60 HZ, 10 Watts
Output: 6 VDC, 300mA
Center Post Negative
Battery with Leads This is the Lead Acid Battery.
It is used to power the Robot.
Specs:
Output: 6 VDC, 4.0 Ah
Physical Size: 2 3/4" L x 1 3/4" W x 4" H
Terminals/Connector: Leaded wires with "barrell type" connector. (Center Post Negative)
